SPECIFICATIONS

Brand Name: ACM

Current: 12V/120mA

Feature: Fail safe, LED Indicator, Feedback signal

Holding force: 280kg

Model Number: Y280S--5bolts

Operating Temp: -10~+55℃(14-131F)

Place of Origin: Guangdong, China

Product Name: Fail-safe Feedback Signal Smart Electronic Door Lock

Size: 250*47*25mm

Suitable: File Cabinet ,Display Cabinet

Surface Temp: ≤+20℃

Voltage: DC 12V

Weight: 1.8kg

Product Description

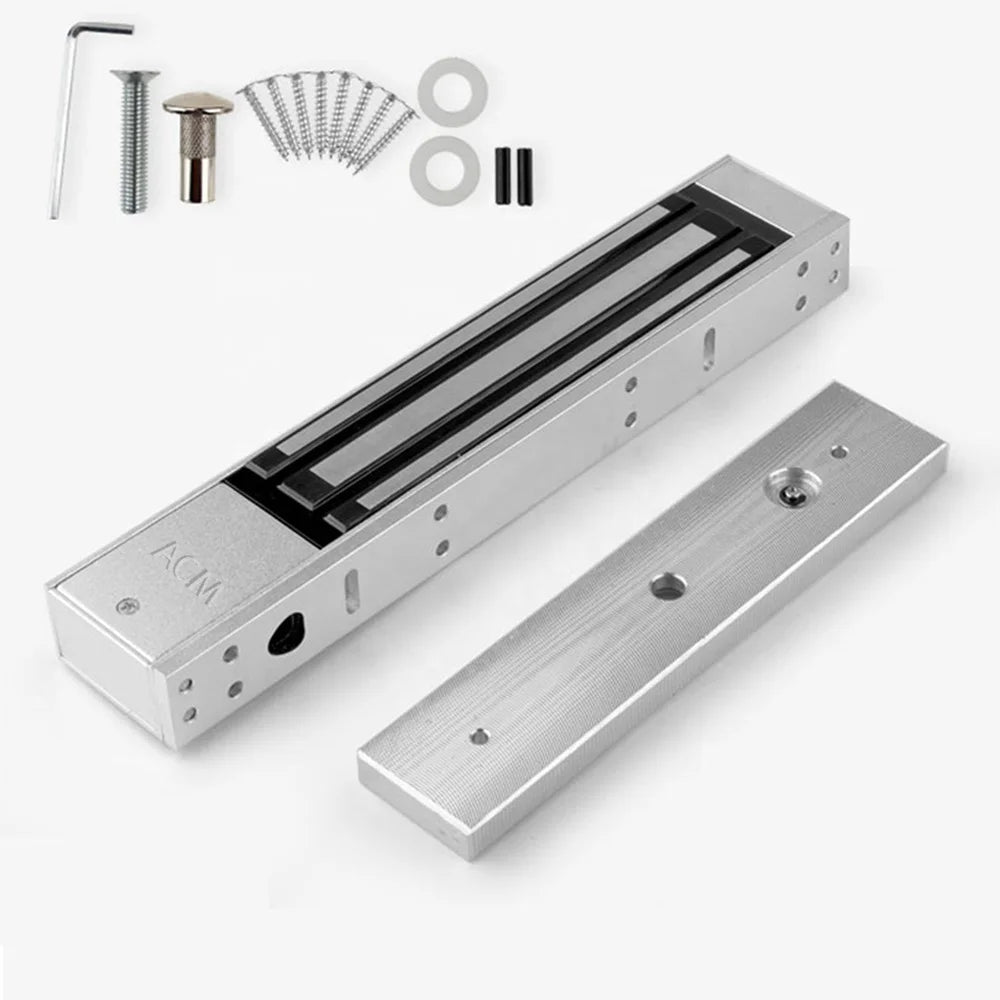

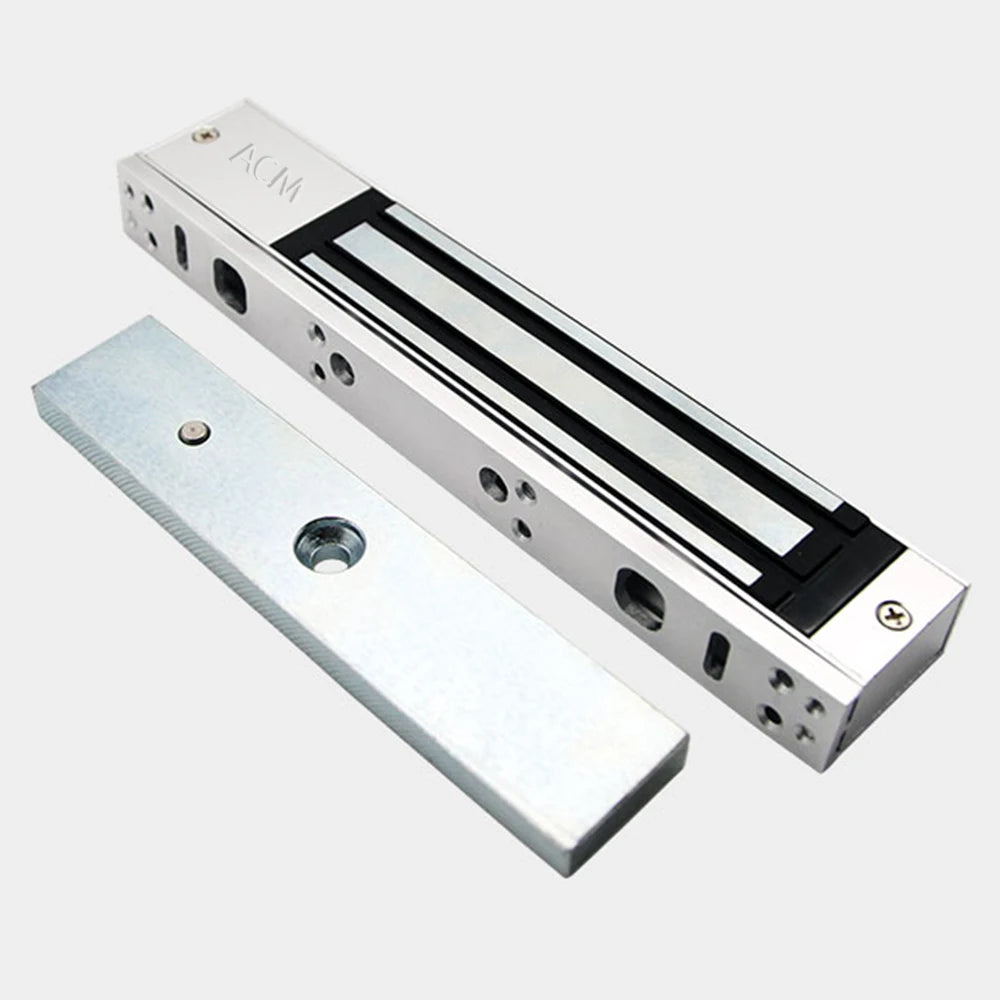

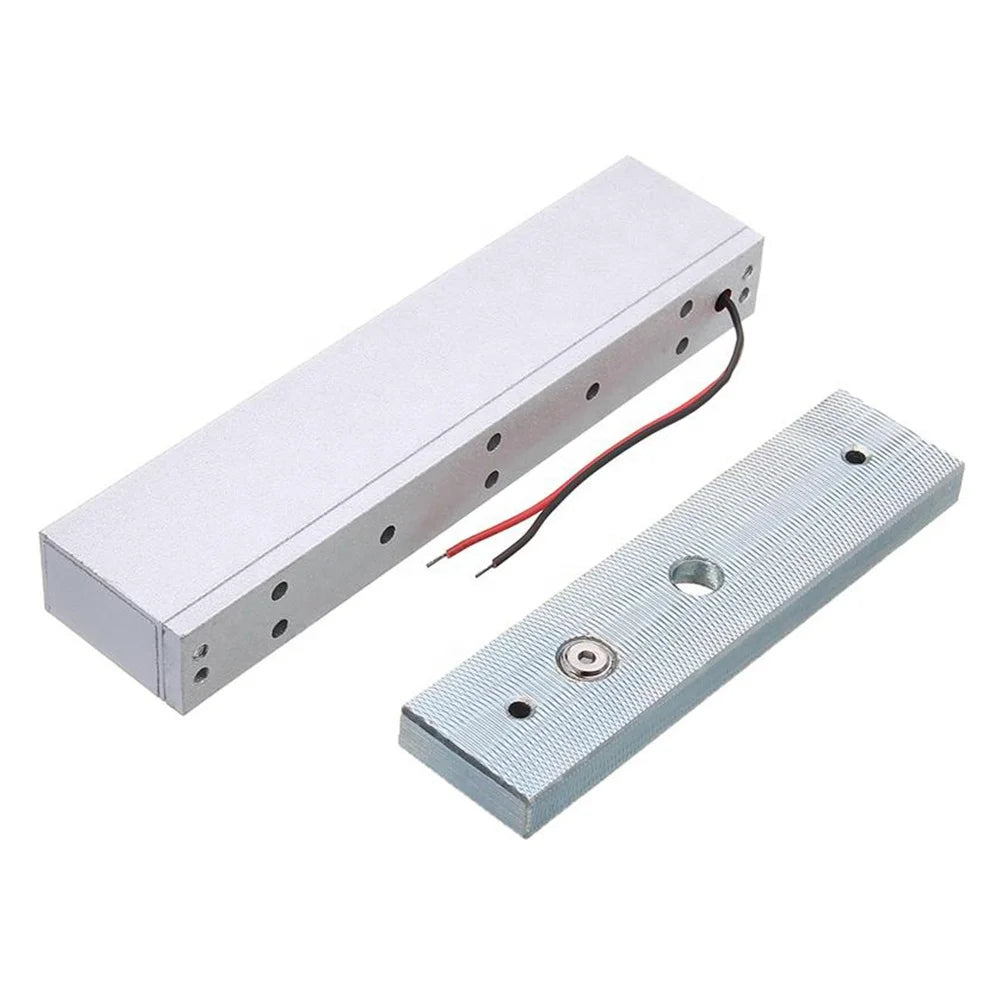

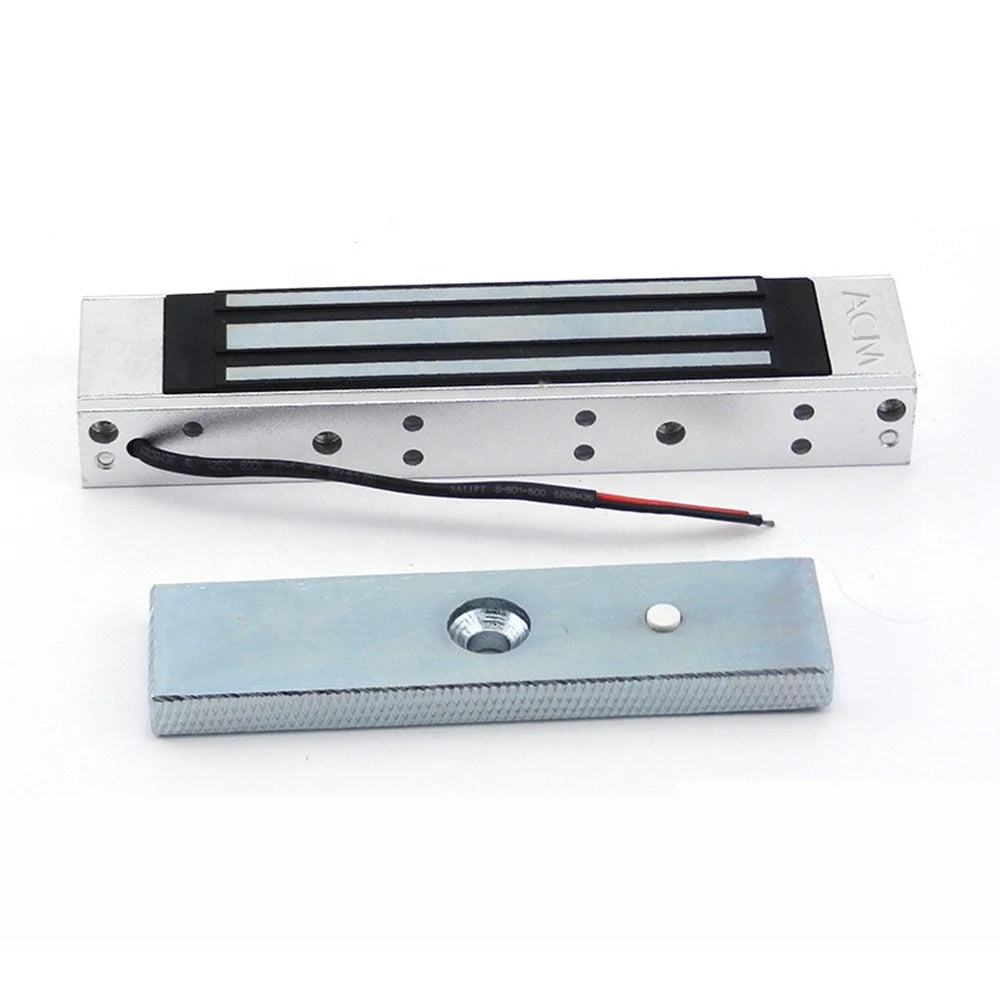

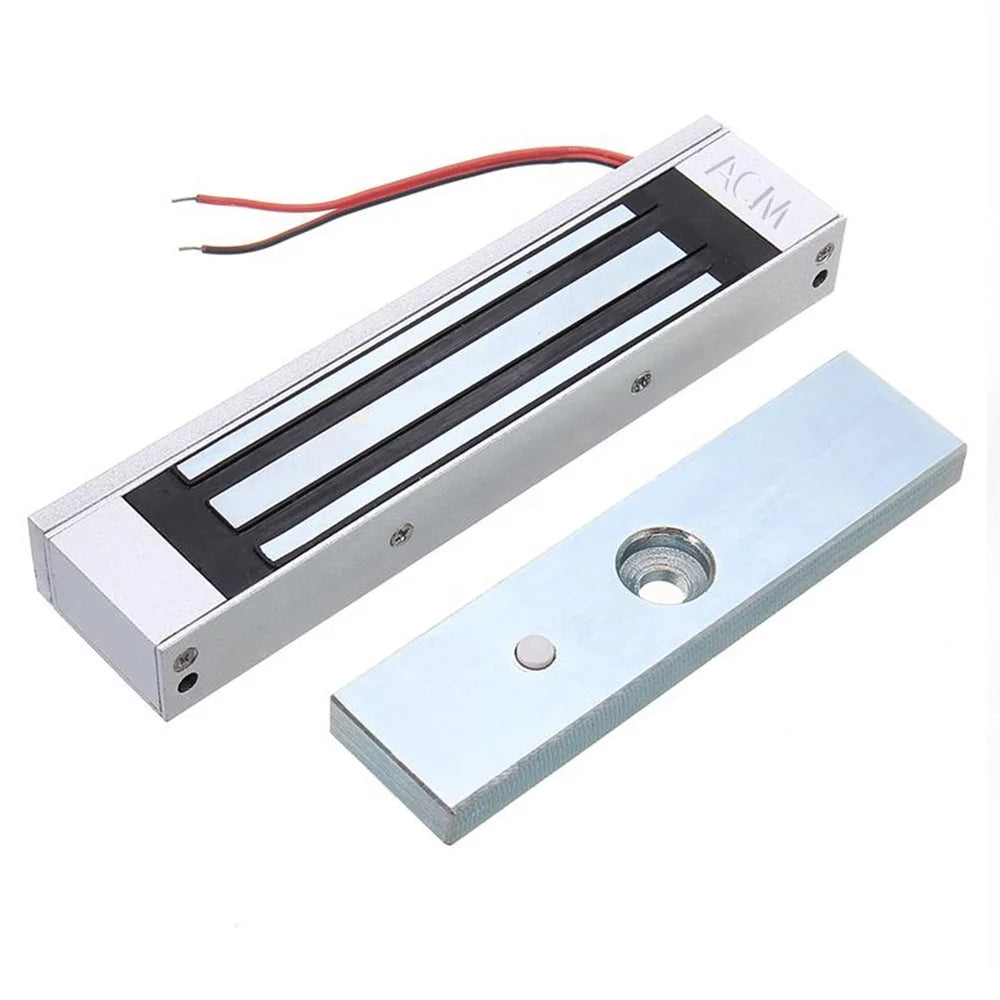

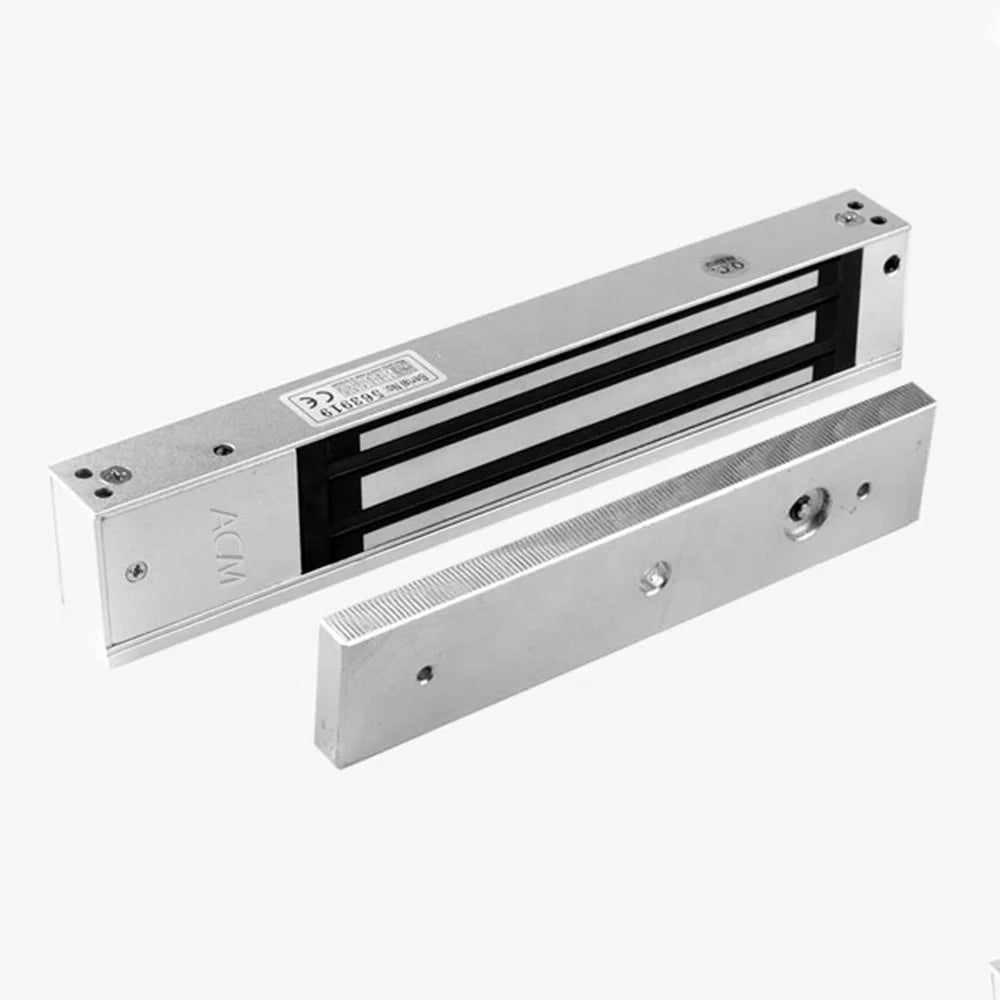

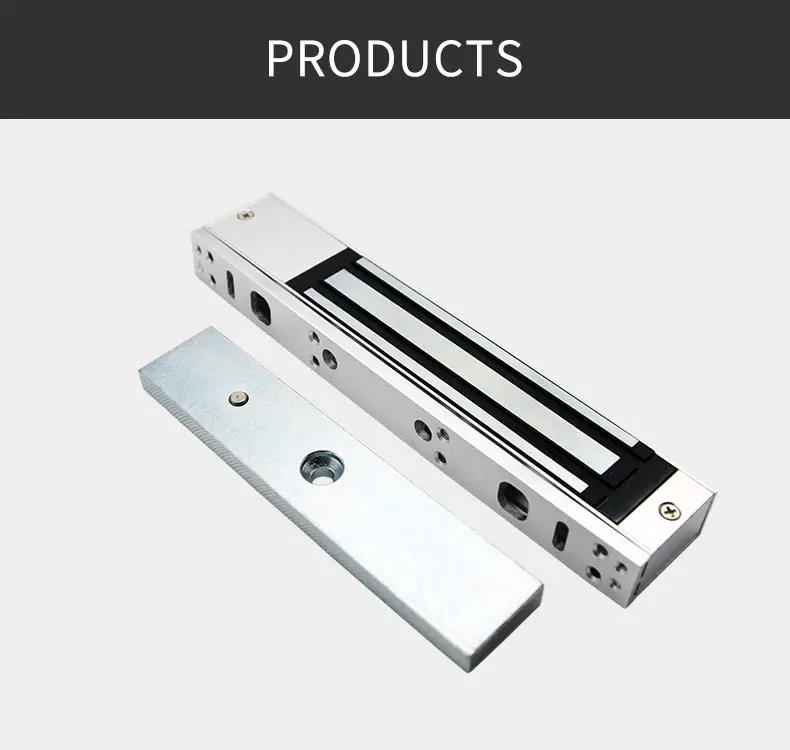

280KG Electric Magnetic Lock DC 12 volt Electromagnetic Fail-safe Feedback Signal Smart Electronic Door Lock

Type: 280KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 280KG/600lbs
Working Voltage: DC12V
Working Current: 110mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door
Dimension: 250x47x25mm

Product Advantage

1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Aluminium alloy case, very strong and durable.
4. Can be opened by push button, remote controller, etc.
5. Using inner hexagon screw, equipped special spanner.
6. Holding force with 280KG(600Lbs). Built-in reverse current protection device(MOV)
7. Fine workmanship design, no mechanical wear and long service life.
8. Mini style, suitable for cabinet, drawer, small type door, and wooden, iron, glass door.

Instalation Diagram
